Organizations that use a Security Assertion Markup Language (SAML) 2.0 single sign-on (SSO) identity provider (IdP) can add Soda Cloud as a service provider.
Once added, employees of the organization can gain authorized and authenticated access to the organization's Soda Cloud account by successfully logging in to their SSO. This solution not only simplifies a secure login experience for users, it enables IT Admins to:
grant their internal users' access to Soda Cloud from within their existing SSO solution
revoke their internal users' access to Soda Cloud from within their existing SSO solution if a user leaves their organization or no longer requires access to Soda Cloud
set up one-way user group syncing from their IdP into Soda Cloud (tested and documented for Azure Active Directory and Okta)
Soda Cloud is able to act as a service provider for any SAML 2.0 SSO identity provider. In particular, Soda has tested and has written instructions for setting up SSO access with the following identity providers:
Soda has tested and confirmed that SSO setup works with the following identity providers:
OneLogin
Auth0
Patronus
When an employee uses their SSO provider to access Soda Cloud for the first time, Soda Cloud automatically assigns the new user to roles and groups according to the Global roles and permissions for any new users. Soda Cloud also notifies the Soda Cloud Admin that a new user has joined the organization, and the new user receives a message indicating that their Soda Cloud Admin was notified of their first login. A Soda Cloud Admin or user with the permission to do so can adjust users’ roles in Organization Settings. See Manage organization roles and settings for details.
When an organization’s IT Admin revokes a user’s access to Soda Cloud through the SSO provider, a Soda Cloud Admin is responsible for updating the resources and ownerships linked to the User.
Once your organization enables SSO for all Soda Cloud users, Soda Cloud blocks all non-SSO login attempts and password changes via cloud.soda.io/login. If an employee attempts a non-SSO login or attempts to change a password using “Forgot password?” on cloud.soda.io/login, Soda Cloud presents a message that explains that they must log in or change their password using their SSO provider.
Optionally, you can set up the SSO integration Soda to include a one-way sync of user groups from your IdP into Soda Cloud which synchronizes with each user login to Soda via SSO. Read more.
Soda Cloud supports both Identity Provider Initiated (IdP-initiated), and Service Provider Initiated (SP-initiated) single sign-on integrations. Be sure to indicate which type of SSO your organization uses when setting it up with the Soda Support team.
Email [email protected] to request SSO set-up for Soda Cloud and provide your Soda Cloud organization identifier, accessible via your avatar > Organization Settings, in the Organization tab.
Soda Support sends you the samlUrl that you need to configure the set up with your identity provider.
As a user with sufficient privileges in your organization's Azure AD account, sign in through portal.azure.com, then navigate to Enterprise applications. Click New application.
Click Create your own application.
In the right panel that appears, provide a name for your app, such as Soda Cloud, then select the (Non-gallery) option. Click Create.
After Azure AD creates your app, click Single sign-on in the left nav under the Manage heading, then select the SAML tile.
In the Basic SAML Configuration block that appears, click Edit.
In the Basic SAML Configuration panel, there are two fields to populate:
Identifier (Entity ID), which is the value of samlUrl from step 1.
Reply URL, which is the value of samlUrl from step 1.
Click Save, then close the confirmation message pop-up.
In the User Attributes & Claims panel, click Edit to add some attribute mappings.
Configure the claims as per the following example. Soda Cloud uses familyname and givenname, and maps emailaddress to user.userprincipalname.
(Optional) Follow the additional steps to enable one-way user group syncing to your SSO configuration; see Set up user group sync in Azure AD).
Scroll down to collect the values of three fields that Soda needs to complete the Azure AD SSO integration:
Azure AD Identifier (Section 4 in Azure). This is the IdP entity, ID, or Identity Provider Issuer that Soda needs
Login URL (Section 4 in Azure). This is the IdP SSO service URL, or Identity Provider Single Sign-On URL that Soda needs.
X.509 Certificate. Click the Download link next to Certificate (Base64).
Email the copied and downloaded values to [email protected]. With those values, Soda completes the SSO configuration for your organization in cloud.soda.io and notifies you of completion.
Soda Cloud supports both Identity Provider Initiated (IdP-initiated), and Service Provider Initiated (SP-initiated) single sign-on integrations; be sure to indicate which type of SSO your organization uses.
(Optional) Ask Soda to enable one-way user group syncing to your SSO configuration; see Set up user group sync in Azure AD.
Test the integration by assigning the Soda application in Azure AD to a single user, then requesting that they log in.
After a successful single-user test of the sign in, assign access to the Soda Azure AD app to users and/or user groups in your organization.
Email [email protected] to request SSO set-up for Soda Cloud and provide your Soda Cloud organization identifier, accessible via your avatar > Organization Settings, in the Organization tab.
Soda Support sends you the samlURL that you need to configure the set up with your identity provider.
As an Okta Administrator, log in to Okta and navigate Applications > Applications overview, then click Create App Integration. Refer to Okta documentation for full procedure.
Select SAML 2.0.
Provide a name for the application, Soda Cloud, and upload the Soda logo.
Click Next. In the Configure SAML tab, there are two fields to populate:
Single sign on URL, which is the value of samlUrl from step 1.
Audience URI (SP Entity ID), which is also the value of samlUrl from step 1.
The values for these fields are unique to your organization and are provided to you by Soda and they follow this pattern: https://cloud.soda.io/sso/<your-organization-identifier>/saml.
Be sure to use an email address as the application username.
Scroll down to Attribute Statements to map the following values, then click Next to continue.
map User.GivenName to user.firstName
map User.FamilyNameto user.lastName
map User.Email to user.email
(Optional) Follow the additional steps to enable one-way user group syncing to your SSO configuration; Set up user group sync in Okta.
Select the following options, then click Finish.
I’m an Okta customer adding an internal app.
This is an internal app that we have created.
In the Sign On pane of the application, scroll down to click View Setup Instructions.
Collect the values of three fields that Soda needs to complete the Okta SSO integration:
Identity Provider Single Sign-On URL
Identity Provider Issuer
X.509 Certificate
Email the copied and downloaded values to [email protected]. With those values, Soda completes the SSO configuration for your organization in cloud.soda.io and notifies you of completion.
Soda Cloud supports both Identity Provider Initiated (IdP-initiated), and Service Provider Initiated (SP-initiated) single sign-on integrations; be sure to indicate which type of SSO your organization uses.
(Optional) Ask Soda to enable one-way user group syncing to your SSO configuration; see Set up user group sync in Okta.
Test the integration by assigning the Soda application in Okta to a single user, then requesting that they log in.
After a successful single-user test of the sign in, assign access to the Soda Okta app to users and/or user groups in your organization.
Email [email protected] to request SSO set-up for Soda Cloud and provide your Soda Cloud organization identifier, accessible via your avatar > Organization Settings, in the Organization tab.
Soda Support sends you the samlURL that you need to configure the set up with your identity provider.
As an administrator in your Google Workspace, follow the instructions in Google Workspace documentation to Set up your own custom SAML application.
Optionally, upload the Soda logo so it appears in the app launcher with the logo instead of the first two letters of the app name.
On the Google Identity Provider details page, be sure to copy or download the following values:
SSO URL
Entity ID
IDP metadata
Certificate
On the SAML Attribute mapping page, add two Google directory attributes and map as follows:
Last Name → User.FamilyName
First Name → User.GivenName
Email the copied and downloaded values to [email protected]. With those values, Soda completes the SSO configuration for your organization in cloud.soda.io and notifies you of completion. Soda Cloud supports both Identity Provider Initiated (IdP-initiated), and Service Provider Initiated (SP-initiated) single sign-on integrations; be sure to indicate which type of SSO your organization uses.
In the Google Workspace admin portal, use Google's instructions to Turn on your SAML app and verify that SSO works with the new custom app for Soda.
If you wish, you can choose to regularly one-way sync the user groups you have defined in your IdP into Soda Cloud.
Cloud that you have already defined in your IdP, and enables your team to select an IdP-managed user groups when assigning ownership access permissions to a resource, in addition to any user groups you may have created manually in Soda Cloud. See: Manage user groups
Soda has tested and documented one-way syncing of user groups with Soda Cloud for Okta and Azure Active Directory. Contact Soda to request tested and documented support for other IdPs.
Soda synchronizes user groups with the IdP every time a user in your organization logs in to Soda via SSO. Soda updates the user's group membership according to the IdP user groups to which they belong at each log in.
You cannot manage IdP user group settings or membership in Soda Cloud. Any changes that you wish to make to IdP-managed user groups must be done in the IdP itself.
In step 10 of the SAML application setup procedure above, in the same User Attributes & Claims section of your Soda SAML Application in Azure AD, follow Microsoft’s instructions to add a group claim to your Soda SAML Application.

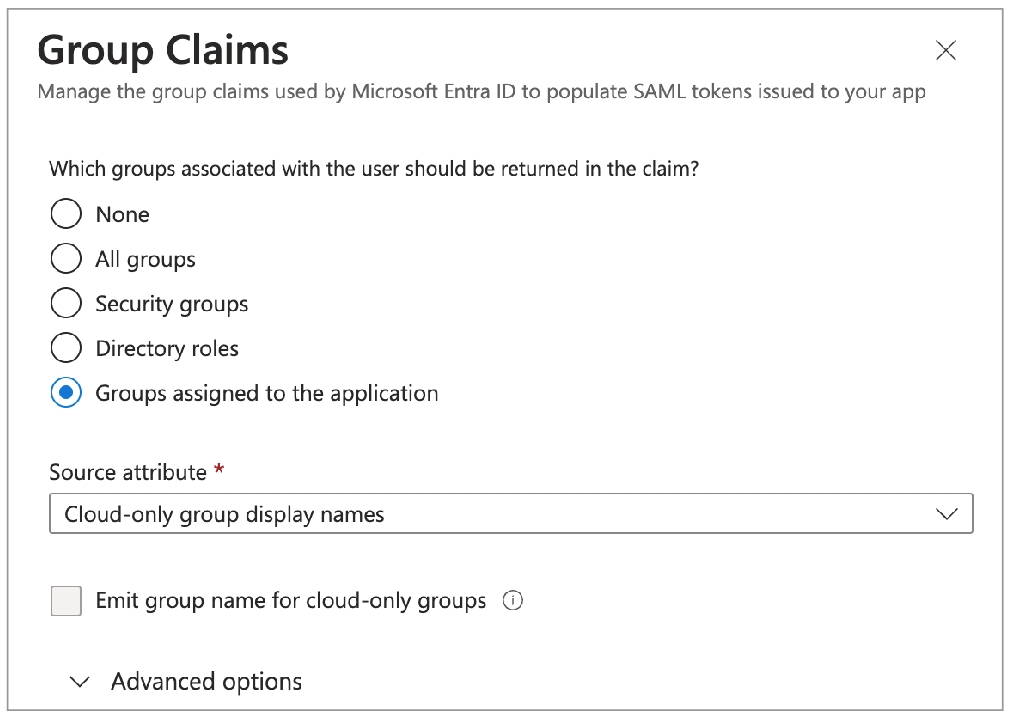

For the choice of which groups should be returned in the claim, best practice suggests selecting Groups assigned to the application.
For the choice of Source attribute, select Cloud-only group display names.
After saving the group claim, navigate to Users and Groups in the left menu, and follow Microsoft's instructions to Assign a user or group to an enterprise application. Add any existing groups to the Soda SAML Application that you wish to make available in Soda Cloud to manage access and permissions.
In your message to Soda Support or your Soda Customer Engineer, advise Soda that you wish to enable user group syncing. Soda adds a setting to your SSO configuration to enable it.
When the SSO integration is complete, you and your team can select your IdP user groups from the dropdown list of choices available when assigning ownership or permissions to resources.

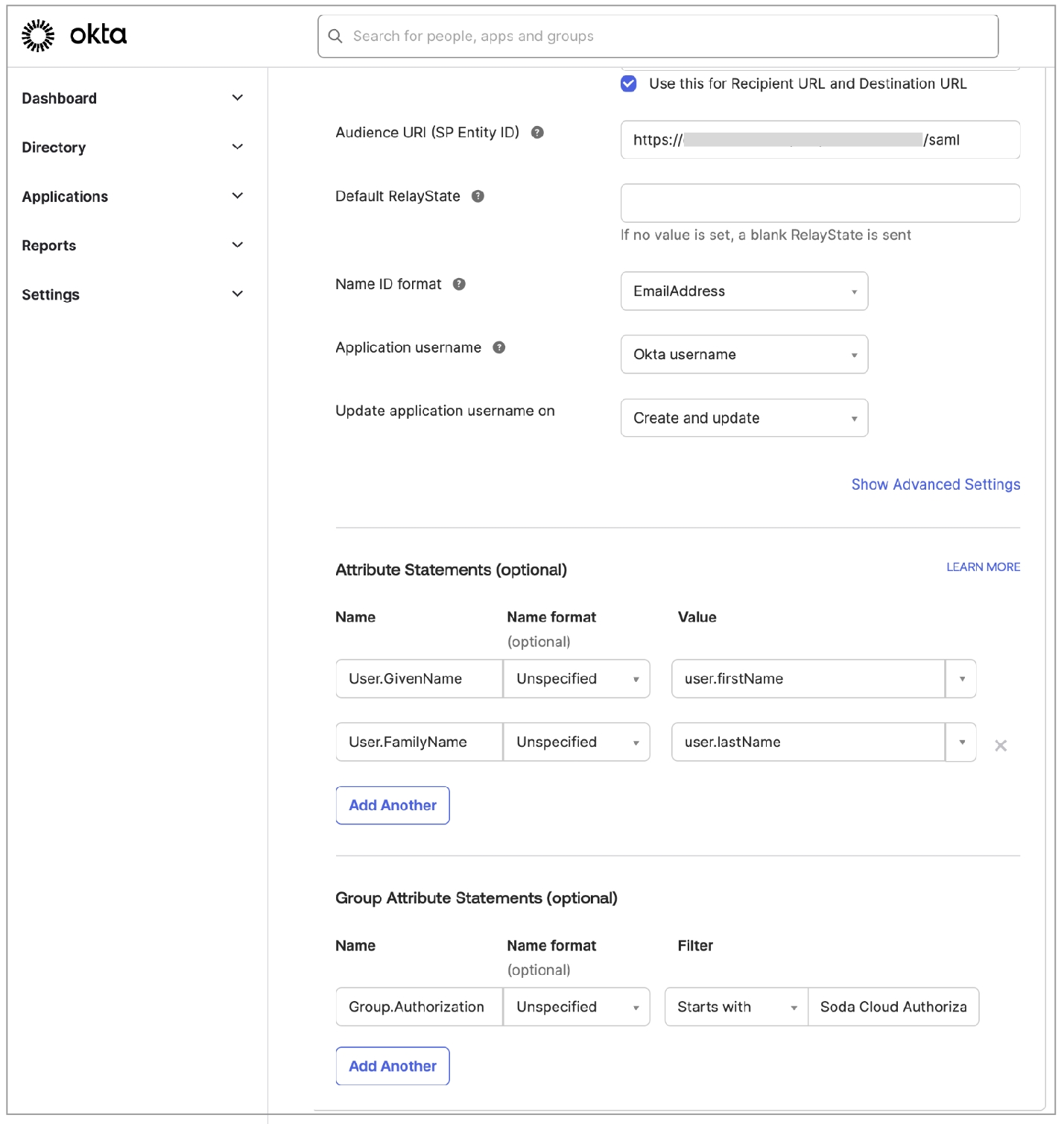

In step 7 of the SAML application integration procedure above, follow Okta's instructions to Define group attribute statements.
For the Name value, use Group.Authorization.
Leave the optional Name Format value as Unspecified.
Use the Filter to find a group that you wish to make available in Soda Cloud to manage access and permissions. Exercise caution! A broad filter may include user groups you do not wish to include in the sync. Double-check that the groups you select are appropriate.
Use the Add Another button to add as many groups as you wish to make available in Soda Cloud.
In your message to Soda Support or your Soda Customer Engineer, advise Soda that you wish to enable user group syncing. Soda adds a setting to your SSO configuration to enable it.
When the SSO integration is complete, you and your team can select your IdP user groups from the dropdown list of choices available when assigning ownership or permissions to resources.
To renew an SSO certificate, you need to provide Soda with the new X.509 certificate, with which Soda will update your Soda organization's SSO configuration. Since Soda can only validate SSO against one certificate, there will be downtime between you deactivating the old certificate, and Soda updating the SSO configuration.
Depending on your organization's process of renewing the certificate, you could notify Soda (or arrange for a call) in advance of the specific datetime you want to renew, so Soda can be prepared for your update and minimize the mentioned downtime.
Learn more about Manage global roles, user groups, and settings.
Learn more about creating and tracking Incidents in Soda Cloud.
Need help? Join the Soda community on Slack.
